Solving the Equation and Writing the Code

You will need to refresh the browser for the equations to show

Objectives

Combine equations from the electrical circuit model into a differential equation
Solving the differential equation in discrete time steps
Program a solver of the differential equation in Python

Creating the Equation

Let's use the 1R1C model from the previous chapter

Which has the equation of

$dT_{in} = \frac{T_{out}-T_{in}}{C_m R_w}dt$

Discrete Integration

To keep things basic, we will discretely integrate this using the forward Euler method with a time step of $\Delta t$

Which gives us the discrete equation of

$\Delta T_{in} = \frac{T_{out}-T_{in}}{C_m R_w} \Delta t \\ T_{in_{k+1}} - T_{in_k} = \frac{T_{out}-T_{in}}{C_m R_w} \Delta t \\ T_{in_{k+1}} = T_{in_k} + \frac{T_{out}-T_{in}}{C_m R_w} \Delta t$

$k$ represents the current indoor temperature and $k+1$ is the indoor temperature of the next time step

Boundary Conditions

The only unknown boundary condition here is the outdoor air temperature. For this next exercise lets assume that we have a constant outdoor air temperature of 8C, and a starting indoor temperature of 20C.

We also need a time step $\Delta T$ , let's set it as 15minutes for now. Smaller timesteps will give our results more resolution but will also take longer to solbe

Writing the code

Let's now bring this into python

# Import Libraries for Plotting
import numpy as np
import matplotlib.pyplot as plt

# Set Boundary Conditions
T_out = 8.0 # Constant outdoor temperature [C]
T_in = 20.0 # Starting internal temperature [C]

list_T_in = [T_in] # Initialise a list for collecting teperature data for plotting

#Set Building Parameters
C_m = 500.0 #[Wh/K]
R_total = 0.057 # [K/W]



# Set Integration Parameters
dt = 0.25 # delta time [hours]
simulation_time = 24.0 # length of simulation[hours]

for k in range (int(simulation_time / dt)):
 T_in = T_in + ((T_out - T_in)/(C_m * R_total)) * dt

 list_T_in.append(T_in)

#Plotting

plt.plot(np.arange(0.0, simulation_time+dt, dt), list_T_in, )
plt.xlabel('Time (Hours)')
plt.ylabel('Indoor Temperature (C)')
plt.show()

Interpreting the results

Congratulations! You have just written your own basic building simulator

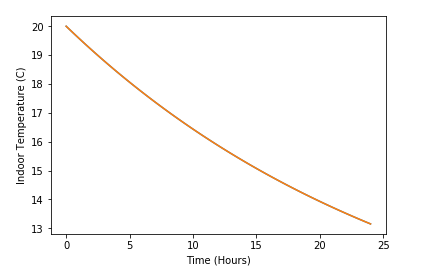

Physically, what you have modeled is a small insulated building, that has an internal temperature of 20C with no heating, no occupants, and no sunlight. The outdoor temperature remains constant at 8C. The line shows how the internal temperature drops over a 24 hour period

Playing with the parameters

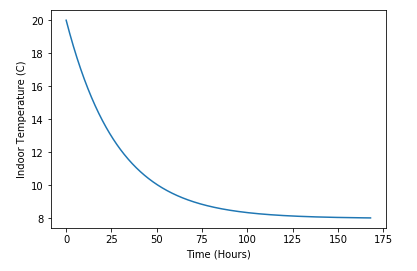

Try now increase the simulation time to a week = 168 hours

Note how the temperature continues to drop towards the outdoor air temperature of 8 degrees and then flattens out. This is typical RC model behaviour

Task

Try modifying the values of the values of the resistance and capacitance. What happens?
Change the outdoor air temperature to 30C
